Accessible Chess Set

An accessible 3D-printed chess set is arranged in starting position on a tactile peg-in-hole board, with white pieces marked by raised sphere rings and smooth black pieces for touch distinction.

371,99 kr. incl. VAT

In stock: 5 available

I make this tactile chess set so blind, visually impaired and sighted players can play together on the same board, without stickers, overlays or extra adaptations.

Choose an option

Up to 25 per order. Need more? Ask me about a bulk order.

Size
Board: 230 x 231 x 15 mm. Tallest pieces: about 67 mm including peg.
Material
Black PLA as standard, finished by hand
Delivery
I make this to order in Denmark; shipping is shown at checkout. Digital files download instantly.
Files
Single-licence download. You can print copies for your own use.
Returns
14-day right of withdrawal on printed items; the withdrawal right ends once a download begins. See returns.

If you choose the digital files

  • I allow you to print as many copies as you like for your own personal use.
  • I allow you to tweak or remix the file for your own prints.
  • I do not allow you to resell, give away or share the file itself.
  • Commercial use is by arrangement. Ask me first.

Full details are in my Terms of Sale and Returns.

See this design in 3D

The interactive 3D preview is optional. I include the written description, photos and printed details on this page, so you do not need the preview to understand the design. It only loads when you activate it.

The 3D preview is optional. Activate the button to load it. Once it appears, use the left and right arrow keys to rotate, the up and down arrow keys to tilt, and the plus and minus keys to zoom. A Reset view button returns the camera to its starting position. A full text description and download are provided below and do not require this preview.

About this piece

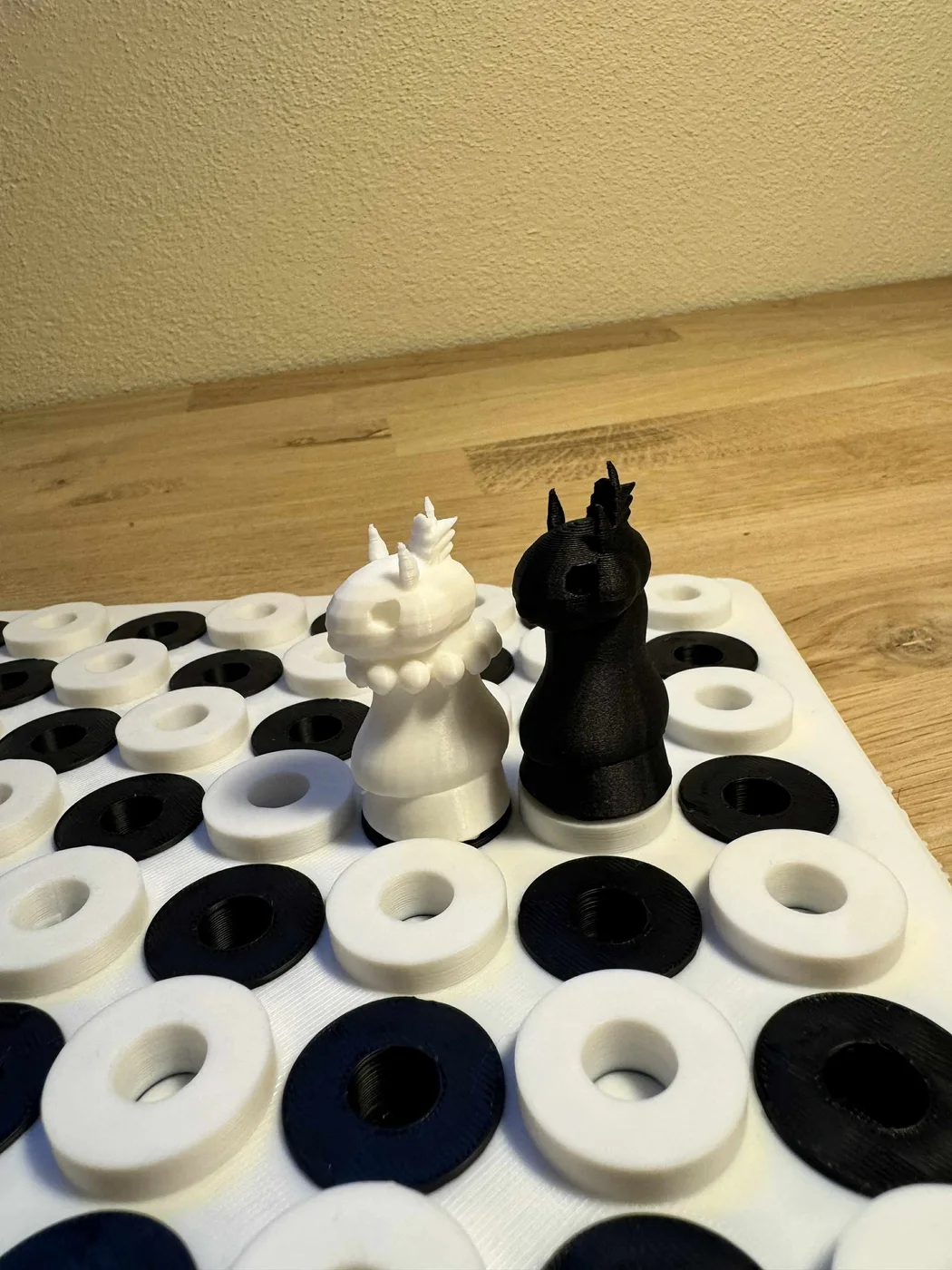

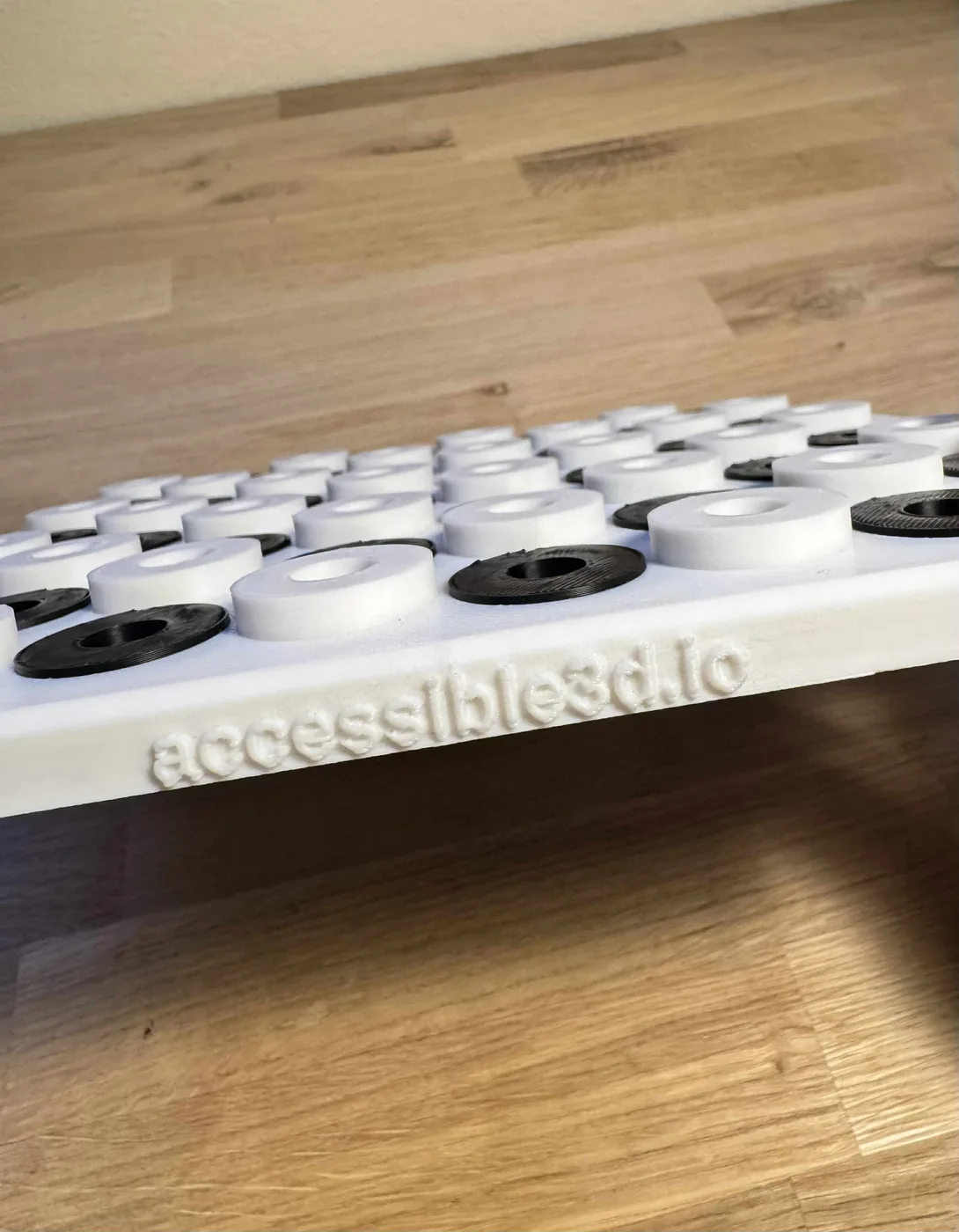

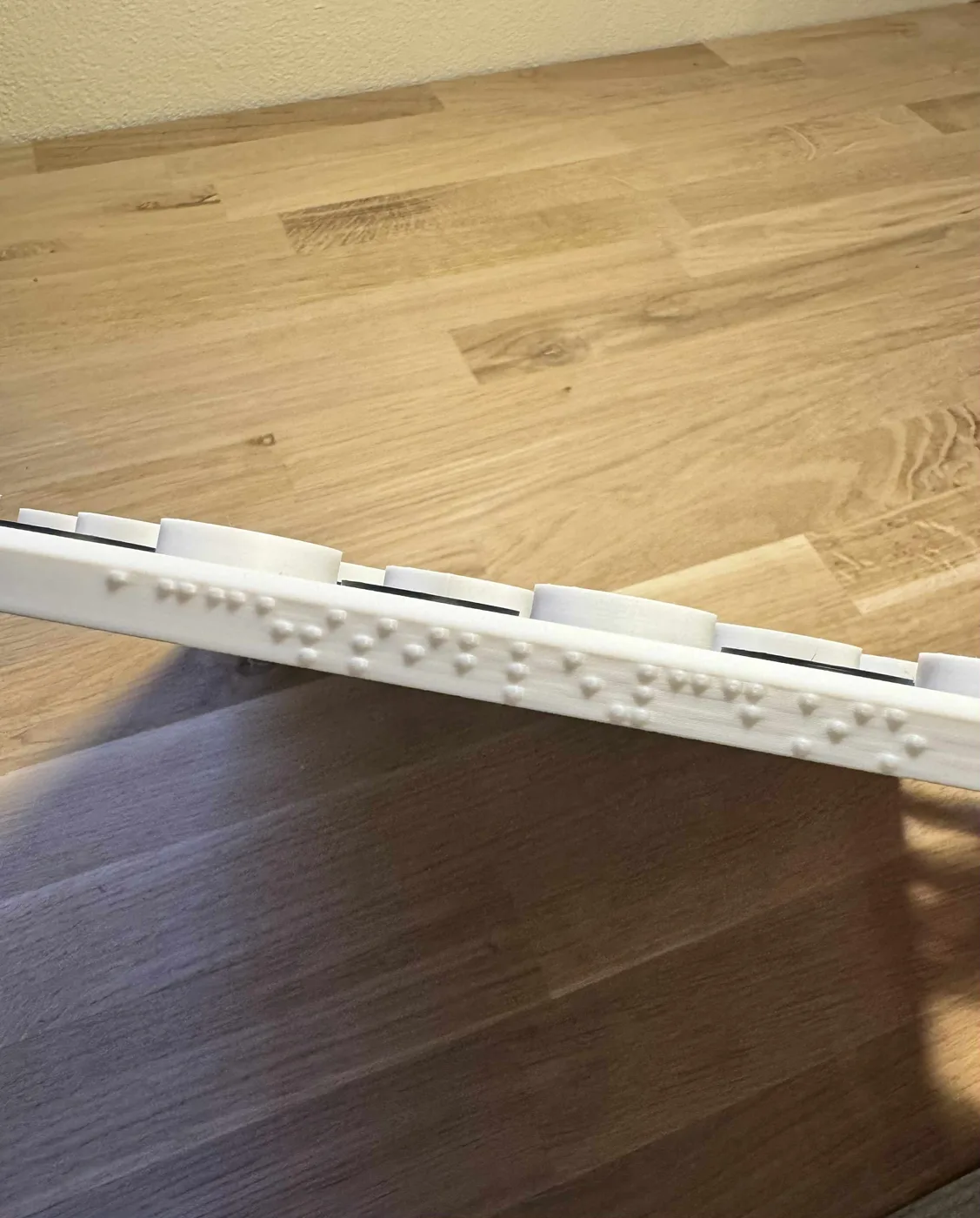

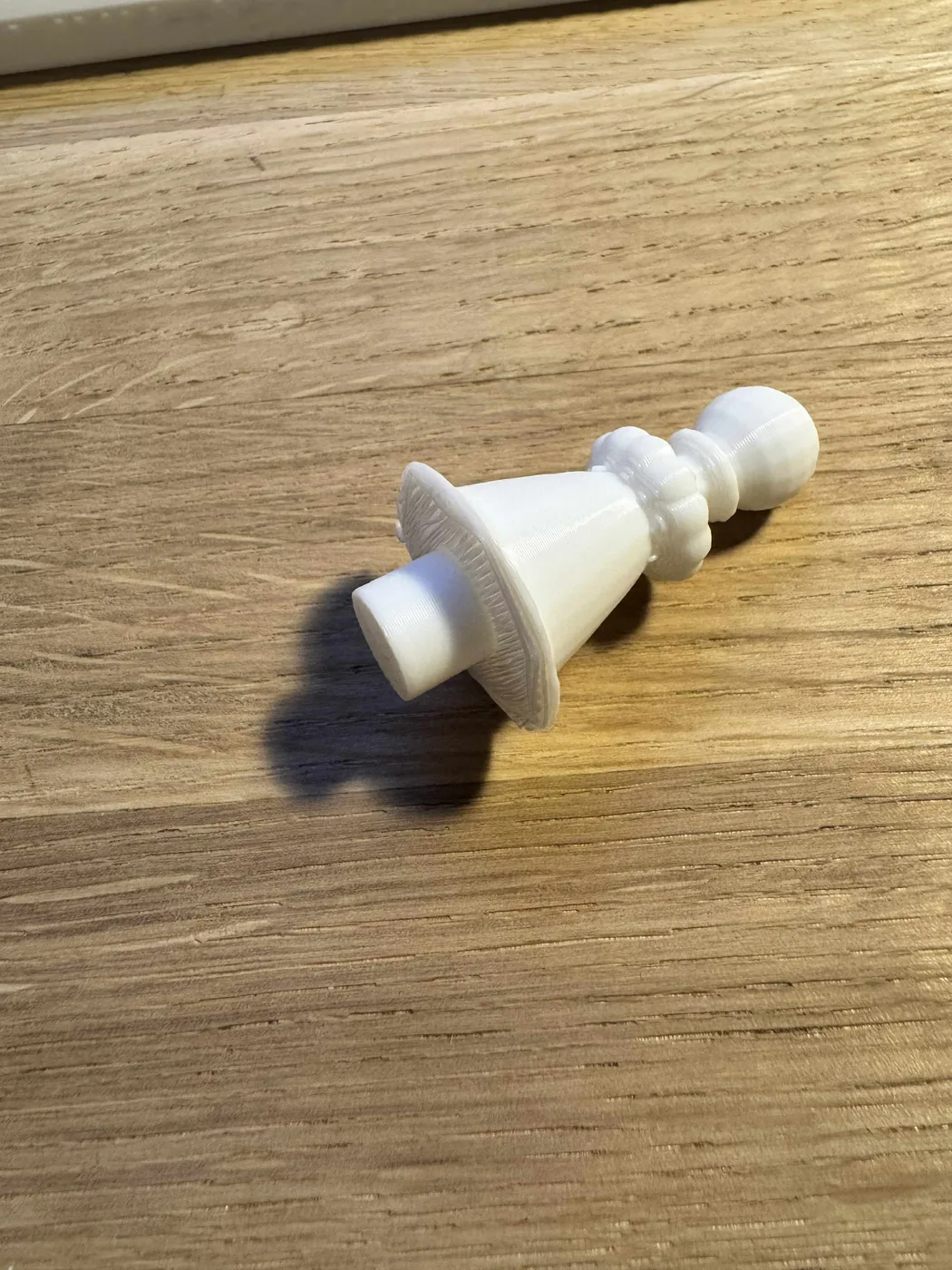

I designed this chess set around touch-first play. The board uses raised cylindrical fields with a peg hole in every square, so the pieces stay in place while you explore the position by hand. The board is about 230 x 231 x 15 mm, with 25 mm fields and 10.5 mm peg holes that are 8 mm deep. I made the two sides easy to separate by touch. White pieces have a ring of raised spheres around the collar, while black pieces are smooth. The pieces have 25 mm bases and the tallest piece is about 67 mm including the peg. The board also includes accessible3d.io in raised text and Braille, because accessibility is part of the object, not something added at the end.

Why I made it this way

  • I use a peg-in-hole board so pieces stay fixed while the board is read by touch.
  • I use raised field markers so the grid can be understood without sight.
  • I give white pieces a raised sphere ring and leave black pieces smooth for fast tactile recognition.
  • I keep the design printable on standard FDM printers with PLA or similar materials.
  • I designed it for blind, visually impaired and sighted players to use together.

What arrives

If you choose the printed option, I send the board and full set of pieces cleaned, checked and ready to use. If you want a different colour or a heavier feel, contact me before ordering.

Printing and finishing

I make printed orders to order in Denmark. I inspect the print, clean the edges, check the peg fit and pack it safely before shipping.

Returns and digital files

Printed items have a 14-day right of withdrawal, plus your 2-year complaint right. For digital downloads, the 14-day withdrawal right ends once the download begins.

The full digital licence is set out beside the buy options above under "If you choose the digital files".

Payment is taken securely through Stripe, so I never see your card details. Questions first? Contact me.

Back to shop
